BRAVO - More than a compliment!

The Bravo Milano Multi-Zone Mini Split Wall-Mounted System offers a sleek, efficient, and reliable solution for personalized climate control in residential or light commercial settings. Available in a variety of capacities—9K, 12K, 18K, and 24K Btu/h—this system is ideal for multi-room applications, delivering precise heating and cooling exactly where you need it.

Each wall-mounted unit features a modern, low-profile design that blends seamlessly with most interior spaces. Designed for single-room comfort, these units automatically adjust their performance based on room conditions to maintain consistent temperature and efficiency.

Equipped with a SMART APP, the Bravo Milano system allows full remote control of temperature, fan speed, and operation mode from any smart device. With a SEER2 rating of up to 24, this system offers quiet performance, high energy efficiency, and year-round comfort you can count on.

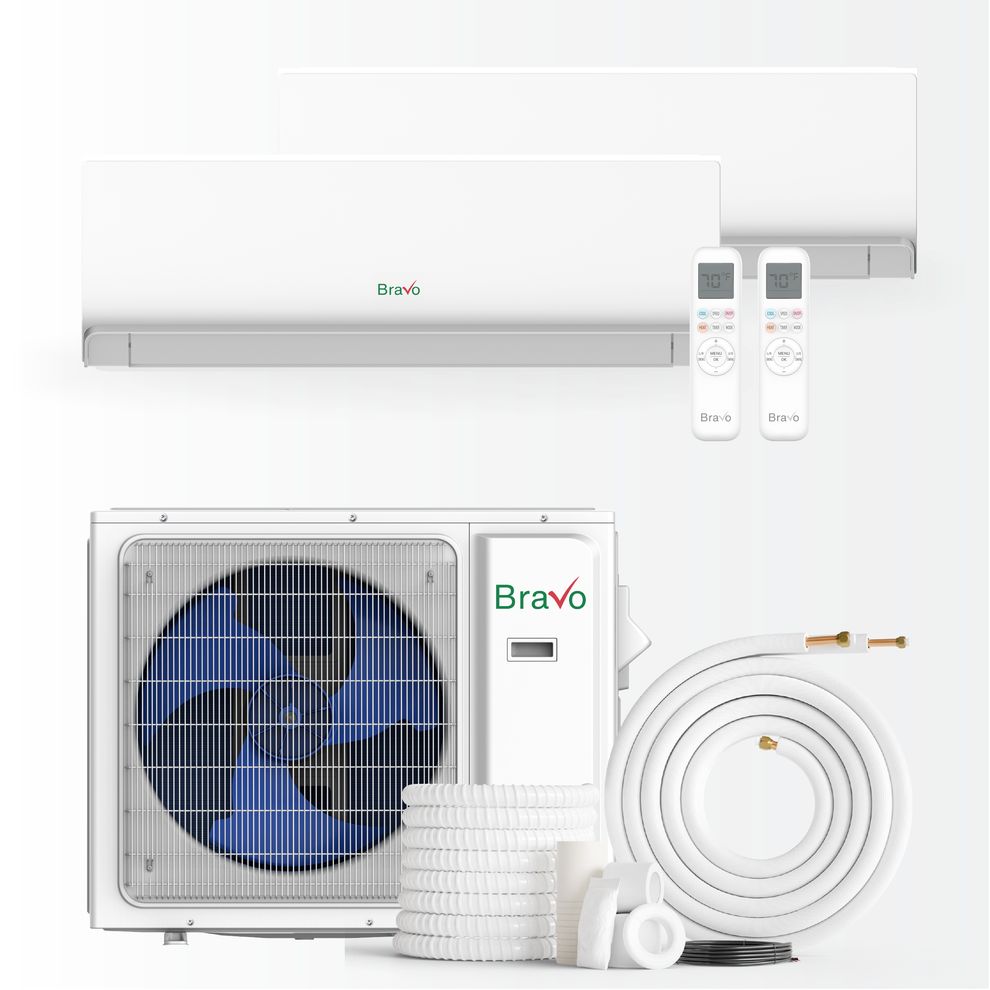

What's Included

2 Indoor Units BRV-M09WM-230VI (9000 BTU 230V Bravo Milano Indoor Wall Mount Unit)

Outdoor Unit BRV-M24-230VO (24,000 BTU 230V Bravo Milano Outdoor Condenser Unit)

Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.

Wireless Remote Controls

Installation Manual

User’s Manual

Manufacturer Warranty

Key Features:

Remote Control Included

Smart App: Connect from anywhere

Comfortable Sleep Mode

Super Mode

Eco Mode

Multiple Fan Speeds

Timer

Sleep Mode

Louver Auto Swing

Anti Mildew Mode

LED Display

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

Other Multi-Zone Bravo Milano Wall Mount Systems

2 Zone

BRV-M24-230VO

9K 9K

9K 12K

12K 12K

12K 18K

18K 18K

Warranty

3 year compressor limited warranty

3 year parts limited warranty (must be installed by a licensed HVAC technician)

Technical Information

Indoor Unit Specifications: BRV-M09WM-230VI

Indoor Model BRV-M09WM-230VI

Power Supply V-Ph-Hz 208-230-1-60

Cooling Capacity Btu/h 9,000

Heating Rated Capacity Btu/h 9,000

Max Fuse A 5

Indoor Air Flow CFM 353

Indoor Noise Level dB(A) 40

Indoor Unit

Dimensions (WxDxH) in 31.02x11.50x7.80

Packing (WxDxH) in 34.65x14.57x11.42

Net/Gross Weight lbs. 17.60/22.00

Refrigerant Piping Liquid Side / Gas Side in 1/4" / 3/8"

Operation Temperature Range °F 60.8-89.6

Outdoor Unit Specifications: BRV-M24-230VO

Outdoor Model BRV-M18-230VO

Power Supply V-Ph-Hz 208-230-1-60

Cooling

Capacity Btu/h 17,700 (3,800-19,800)

EER2 Btu/h 3.6

SEER2 Btu/h 22

Heating

Rated Capacity Btu/h 18,000 (4,200-22,000)

HSPF2-4 Btu/h 10

COP2 W/W 3.8

Minimum Circuit Ampacity A 20

Max Fuse A 20

Outdoor Air Flow CFM 1529

Outdoor Side Noise Level dB(A) 54

Outdoor Unit

Dimensions (WxDxH) in 34.65x13.90x21.93

Packing (WxDxH) in 35.55x15.04x24.21

Net Weight lbs. 75.0/80.5

Refrigerant Type/Volume OZ R32/38.8

Refrigerant Precharge ft 24.6

Refrigerant Piping

Liquid Side / Gas Side in 1/4" / 3/8"

Max Refrigerant Pipe Length ft 82

Ambient Tempeture

Outdoor (Cooling) °F -13~125.6

Outdoor (Heating) °F -13-75.2

Performance Data/Features

Sleek matte finish

Turbo Function

Silent Function

LED Display

Horizontal Auto Swing

Timer

Comfortable Sleep Mode

Multiple Fan Speeds

Self-Cleaning Function

Follow Me Function

Activated Carbon Filter
